Victron Multiplus-II 48/3000/35-32 230V
KSh 149,999.00
The Victron MultiPlus-II 48/3000/35-32 230V is a 3 kVA inverter/charger with a 48 V, 35 A multi-stage battery charger and PowerAssist technology, delivering reliable AC power and intelligent battery management for off-grid, mobile, and backup systems.
Description
Victron MultiPlus-II 48/3000/35-32 230V
The Victron MultiPlus-II 48/3000/35-32 230V is a versatile and reliable inverter/charger designed to provide continuous 230V AC power for off-grid, mobile, or backup applications. With a 3 kVA pure sine wave inverter and an intelligent 48 V, 35 A multi-stage battery charger, it delivers clean, stable power while protecting and optimizing battery life.
Equipped with PowerAssist technology, it can supplement grid or generator power during peak loads, preventing overloads and ensuring critical appliances continue running smoothly. The unit also supports seamless integration with Victron systems, remote monitoring via the Victron VRM portal, and programmable settings for different battery types.
Compact, robust, and safe, the MultiPlus-II 48/3000/35-32 230V is ideal for homes, or small industrial setups, offering a smart, efficient, and reliable energy solution.
Victron MultiPlus-II 48/3000/35-32 230 V Technical Specifications
| Specification | Value |
|---|---|
| Model | MultiPlus-II 48/3000/35-32 230 V |
| PowerControl & PowerAssist | Yes |
| Transfer Switch | 32 A |
| Maximum AC Input Current | 32 A |
| Auxiliary Output | Yes (32 A) |
| Programmable Relay | Yes |
| Protection | Overload, short-circuit, over/under voltage, temperature |
| Communication Ports | VE.Bus, general purpose, remote on/off |
| Operating Temperature | -40 to +65 °C (fan-assisted) |
| Humidity | Max 95 % non-condensing |
| Maximum Altitude | 2000 m |
| Inverter – DC Input Voltage Range | 38–66 V |
| Inverter – AC Output Voltage | 230 V ± 2 % |
| Inverter – Frequency | 50 Hz ± 0.1 % |
| Inverter – Continuous Output Power (25 °C) | 3000 VA / 2400 W |
| Inverter – Continuous Output Power (40 °C) | 2200 W |
| Inverter – Continuous Output Power (65 °C) | 1700 W |
| Inverter – Maximum Apparent Power | 3000 VA |
| Inverter – Peak Power | 5500 W |
| Inverter – Maximum Efficiency | 95 % |
| Inverter – Zero-Load Power | 11 W |
| Inverter – Zero-Load Power (AES Mode) | 7 W |
| Inverter – Zero-Load Power (Search Mode) | 2 W |
| Charger – AC Input Voltage Range | 187–265 VAC |
| Charger – AC Input Frequency | 45–65 Hz |
| Charger – Absorption Charge Voltage | 57.6 V |
| Charger – Float Charge Voltage | 55.2 V |
| Charger – Storage Mode Voltage | 52.8 V |
| Charger – Maximum Battery Charge Current | 35 A |
| Charger – Battery Temperature Sensor | Yes |
| Enclosure – Material & Color | Steel, Blue RAL 5012 |
| Enclosure – Protection Category | IP22 |

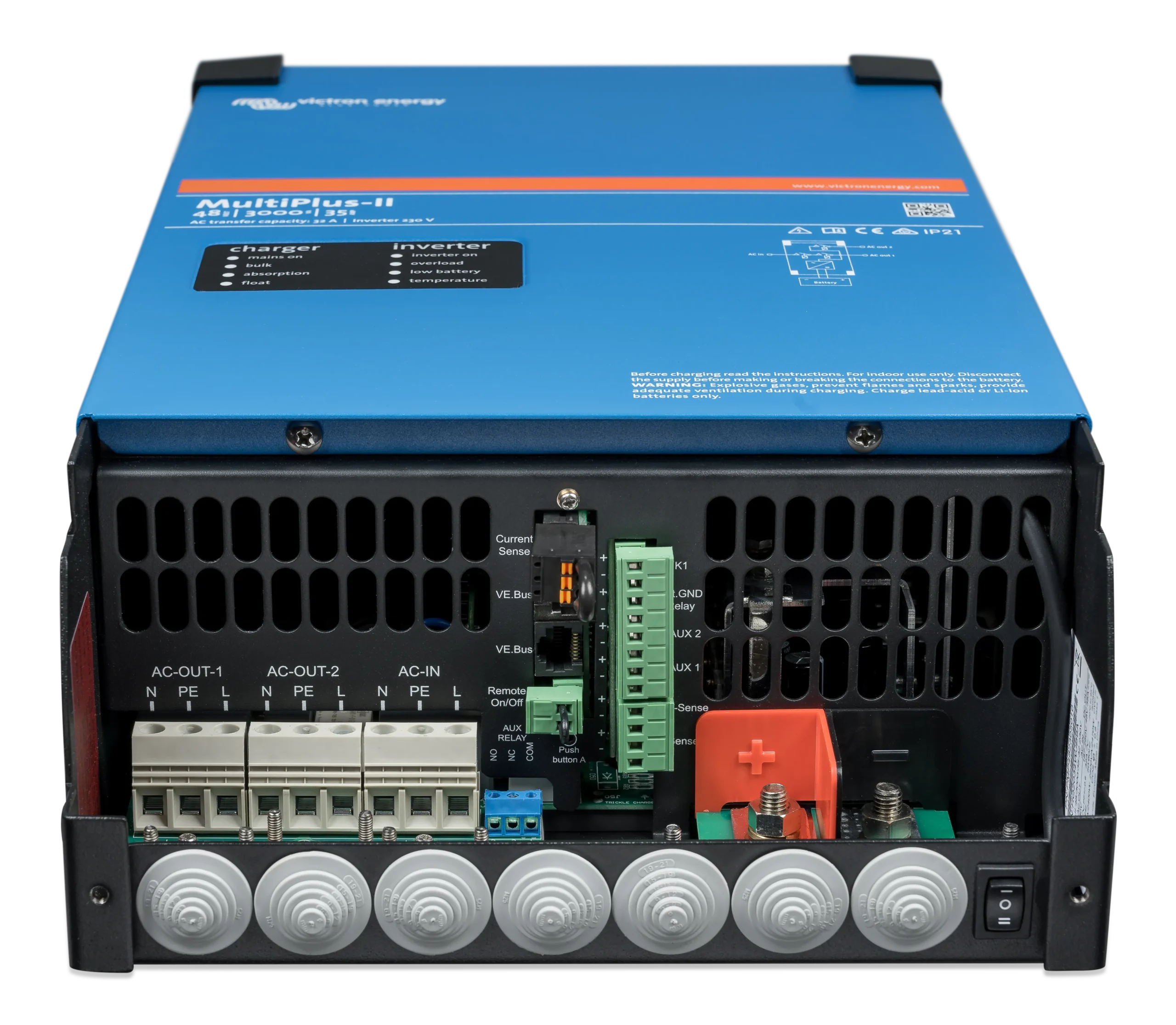

| Enclosure – Battery Connections | 4× M8 bolts (2 plus, 2 minus) |
| Enclosure – AC Connections | Screw terminals 13 mm² |
| Enclosure – Weight | 30 kg |
| Enclosure – Dimensions (HxWxD) | 499 × 268 × 141 mm
|
Downloads and Support
1. MultiPlus-II 48/3000/35-32 230V Manual.
2. MultiPlus-II 48/3000/35-32 230V Datasheet.
