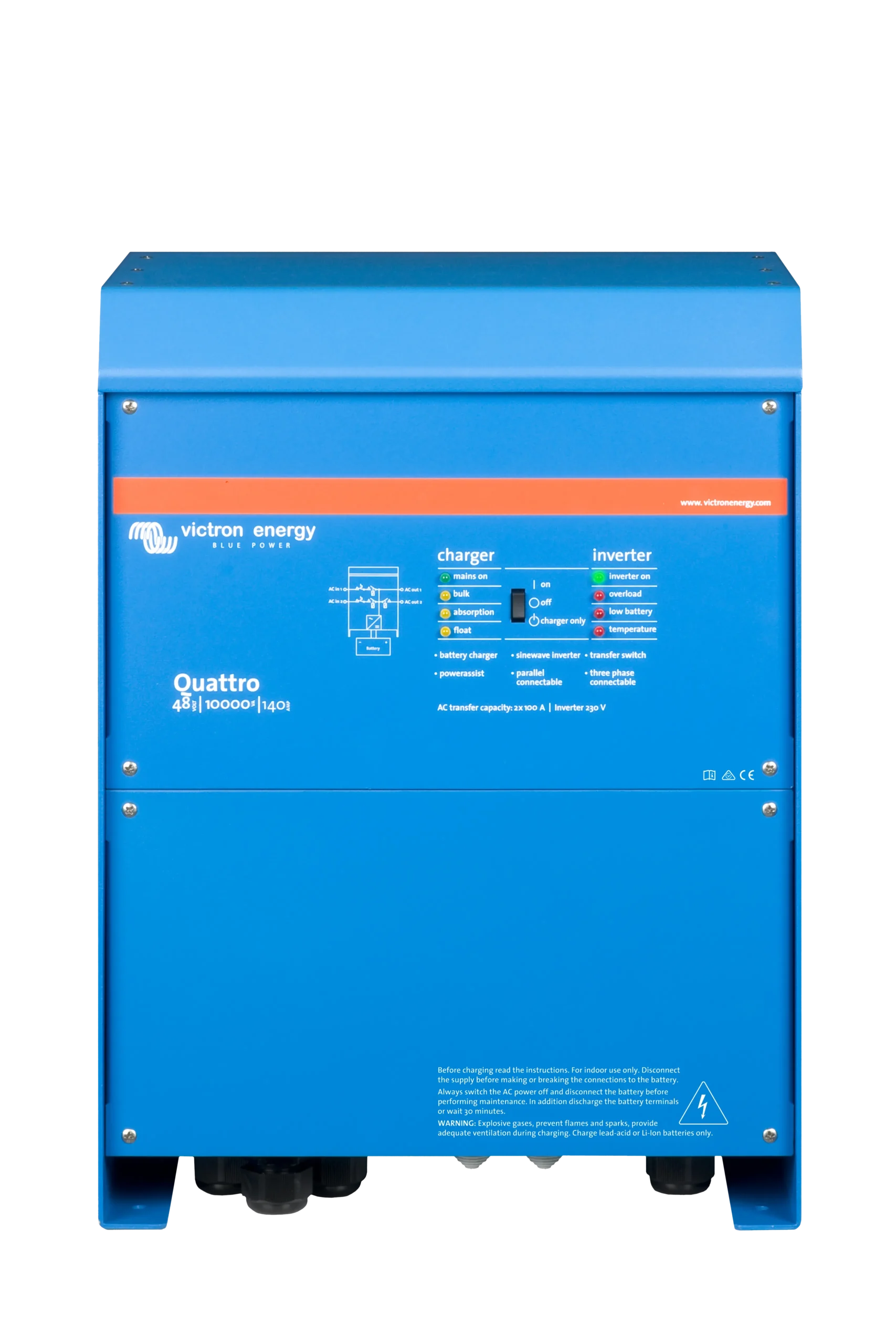

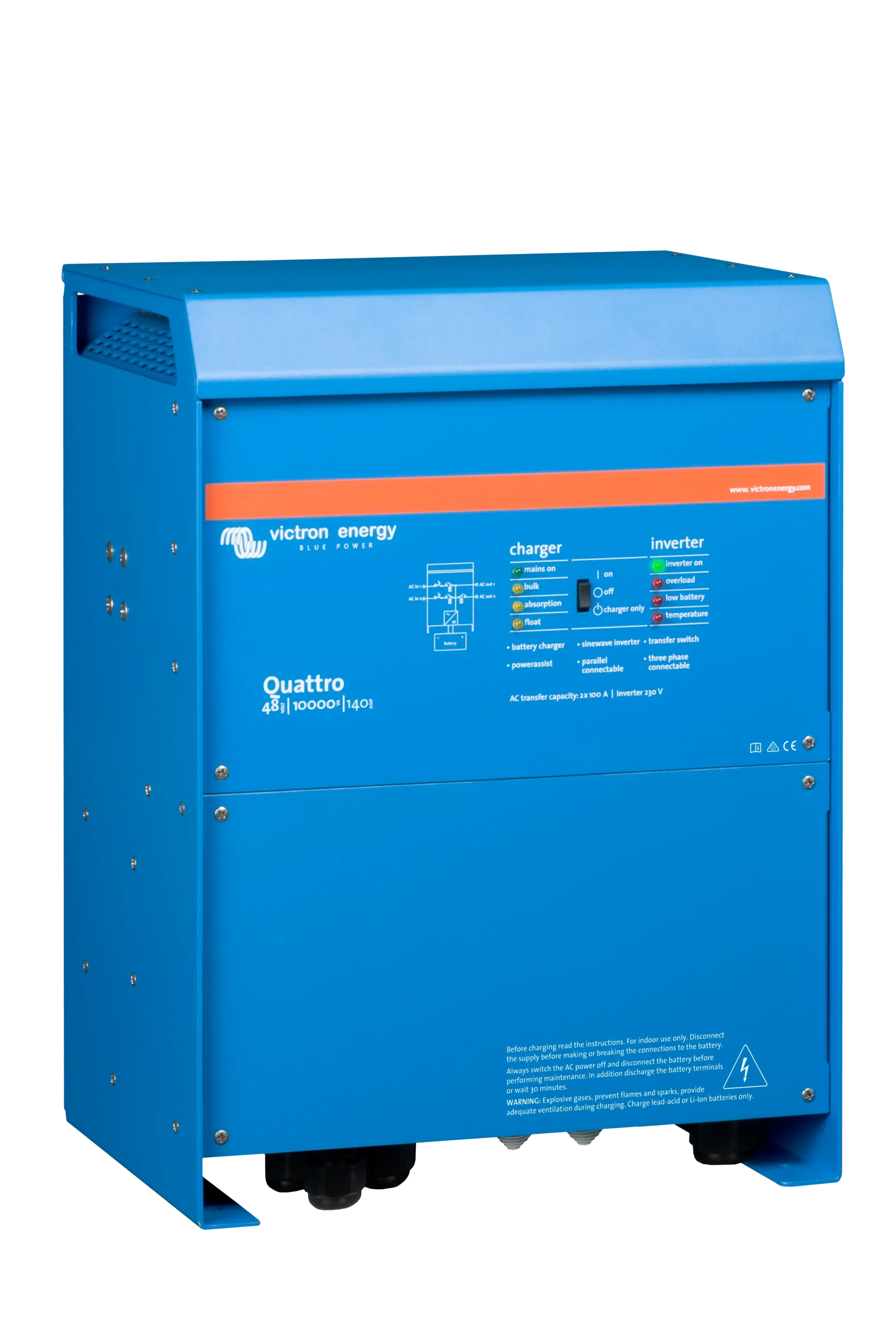

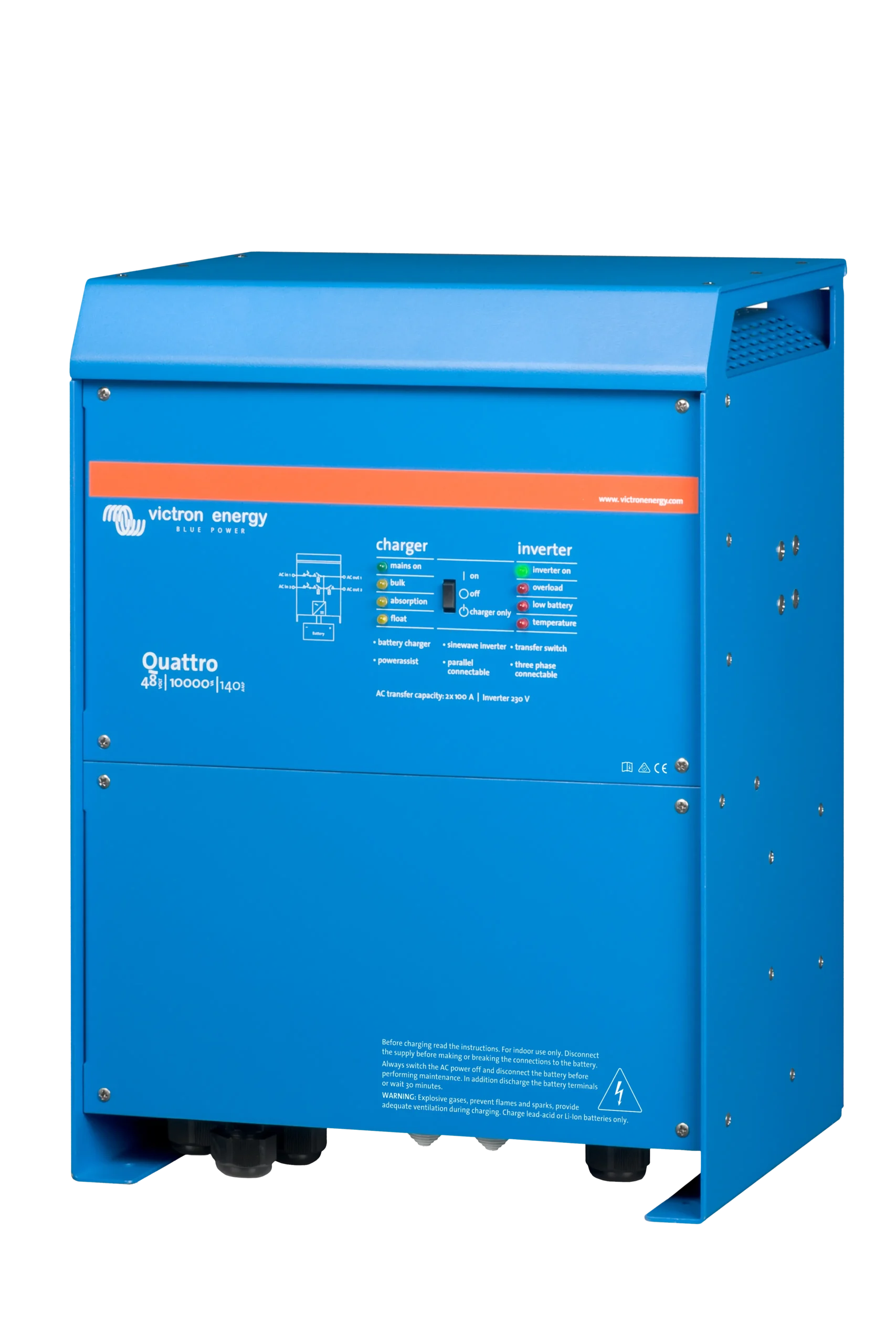

Victron Quattro 48/10000/140 230V

Dual AC Inputs on the Victron Quattro 48/10000/140 230V

The Victron Quattro can connect to two independent AC sources, such as the public grid and a generator, or two generators. It automatically switches to the active source, ensuring uninterrupted power.

Two AC Outputs

The main output provides no-break functionality. The Quattro immediately takes over the supply to connected loads if the grid fails or shore/generator power disconnects. This transfer happens in less than 20 milliseconds, allowing computers and other electronic equipment to continue operating without interruption.

The second output activates only when AC power is available on one of the Quattro inputs. Connect loads that should not discharge the battery—like water heaters—to this output.

Split-Phase Capability With Quattro 48/10000/140 230V

You can create a split-phase AC source by connecting our autotransformer to a single-phase 240 V inverter programmed to operate at 60 Hz.

Three phase capability

You can configure three units to deliver a three-phase output. Furthermore, up to four sets of three 15 kVA units can operate in parallel, providing 144 kW / 180 kVA inverter power and 2400 A of charging capacity.

PowerControl – Managing Limited Generator, Shore, or Grid Power

The Quattro includes a powerful battery charger that can draw significant current from a generator or shore supply (for example, a 5 kVA Quattro can draw up to 16 A at 230 VAC). You can set a current limit for each AC input. Once you configure the limit, the Quattro monitors other AC loads and uses only the remaining current for charging, preventing overload on the generator or mains supply.

PowerAssist – Boosting Shore or Generator Power

PowerAssist builds on the PowerControl function by temporarily boosting the capacity of the external AC source. When your system requires peak power for short periods, the Quattro instantly supplements insufficient generator or shore power with battery energy. After the load drops, it automatically uses the spare power to recharge the battery.

PV Systems – AC Power Even During Grid Failure

The Victron Quattro 48/10000/140 230V works in:

• Off-grid systems

• Grid-connected PV systems

• Hybrid setups with MPPT chargers or grid-tie inverters

It also supports loss-of-mains detection for regulatory compliance.

How to Configure a Victron Quattro

In stand-alone systems, settings can be changed within minutes using the DIP switch setup procedure. For parallel or three-phase systems, configure the units with VE.Bus Quick Configure or VE.Bus System Configurator software. When dealing with off-grid, grid-interactive, or self-consumption systems—especially those including grid-tie inverters or MPPT Solar Chargers—you can set up the Quattro using the appropriate Assistants, which are specialized software modules for each application.

On-site Monitoring and control

You can monitor and control the Quattro using:

• Battery Monitor

• Multi Control Panel

• Color Control GX or other GX devices

• Smartphone or tablet via Bluetooth Smart

• Laptop or computer via USB or RS232

Remote Monitoring and control of Victron Quattro 48/10000/140 230V

When connected to Ethernet, systems with a Color Control GX or other GX device can be accessed remotely. You can view data and adjust settings via the VRM (Victron Remote Management) website, free of charge.

Victron Quattro 48/10000/140 230V — Full Specification

Category	Specification
Model	Victron Quattro 48/10000/140-100/100 (230V)
Nominal Battery Voltage	48 V
PowerControl / PowerAssist	Yes
Integrated Transfer Switch	Yes
AC Inputs	2×100A
AC Input Voltage Range	187–250 VAC
AC Input Frequency	50/60 Hz
Cos ϕ	>0.8
Maximum Feed-Through Current	2× 100 A
ICw	10 kA for 30 ms
DC Input Voltage Range	38–66 VDC
AC Output Voltage	230 VAC ± 2%
AC Output Frequency	50 Hz ± 0.1%
Continuous Output Power (VA) @25°C	10,000 VA
Continuous Output Power (W) @25°C	8,000 W
Continuous Output Power (W) @40°C	6,500 W
Continuous Output Power (W) @65°C	4,500 W
Peak Power	20,000 W
DC Input Current	235 A
Max Continuous AC Output Current	37 A
Power Factor Range	±0.8
Maximum Output Fault Current	100 A for 1 sec
Efficiency (Max)	96%
Zero Load Power	60 W
Zero Load Power (AES Mode)	40 W
Zero Load Power (Search Mode)	15 W
Absorption Voltage	57.6 V
Float Voltage	55.2 V
Storage Voltage	52.8 V
Charge Current (House Battery)	140 A
Charge Current (Starter Battery)	— (not on 48V models)
Battery Temperature Sensor	Yes
Auxiliary Output	50 A
Programmable Relays	3×
Protection	a–g
VE.Bus Communication	Yes (parallel, 3-phase, integration)
General Purpose Com Ports	2×
Remote On/Off	Yes
Operating Temperature	−20°C to +60°C
Humidity (Max, Non-Condensing)	95%
Maximum Altitude	2000 m
Enclosure Material / Colour	Aluminium, Blue (RAL 5012)
Protection Category	IP20 (Pollution Degree 2, OVC III)
Battery Connections	4× M8 bolts (2+ / 2−)
AC Connection	Screw terminals 13 mm²
Dimensions (H × W × D)	470 × 350 × 280 mm
Weight	51 kg
