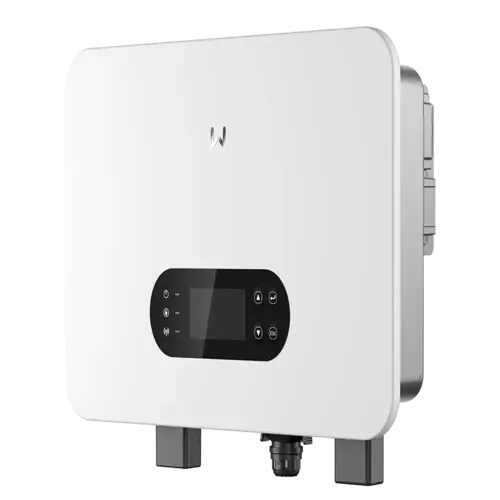

GoodWe GW10K-ES-C10 Hybrid Inverter
KSh 229,999.00
GoodWe GW10K-ES-C10 is a 10 kW single-phase hybrid inverter designed for low-voltage batteries. It offers efficient energy conversion, seamless backup power, and flexible operation for residential systems.
Key specs:
• Power: 10 kW
• Phase: Single phase
• Type: Hybrid LV
• Battery voltage: 40–60 V
• Ideal for: Home solar+storage setups
Description
The GW10K-ES-C10 hybrid inverter by GoodWe delivers efficient and reliable solar energy conversion for modern homes. Designed for residential PV systems, it combines on-grid and off-grid functionality with a single-phase 10 kW output, making it ideal for homeowners looking for flexible energy solutions. Its hybrid design allows seamless integration with solar panels and batteries, ensuring uninterrupted power supply even during grid outages.
Flexible Energy Management with 3-in-1 Port
Equipped with a versatile 3-in-1 port, the GW10K-ES-C10 supports generators, smart loads, and on-grid connection, simplifying system installation and management. The inverter also supports microgrid operation in combination with PV inverters, providing autonomous and stable power supply even in weak grid or off-grid scenarios. Users can connect up to six inverters in parallel for easy system expansion and increased energy output.
Fast Backup Switching & Superior Safety
With a rapid backup switching time of less than 4 ms, the GW10K-ES-C10 hybrid inverter ensures critical loads remain powered during outages. Advanced safety features include AI-driven Arc Fault Circuit Interrupter (AFCI) technology, which mitigates potential fire hazards, and an IP66-rated enclosure, safeguarding the inverter from dust and water ingress for reliable long-term performance.
Smart Monitoring and Battery Compatibility
The inverter features a user-friendly touch-screen LCD display for intuitive monitoring and system control. It is compatible with a range of battery types and capacities, including GoodWe’s Lynx A and Lynx U series, as well as other lead-acid and Li-ion batteries. Additionally, the system supports a maximum DC input current of 20 A per string and allows 200% PV input oversizing for higher energy generation.
Ideal for Modern Homes and Scalable Installations
The GW10K-ES-C10 hybrid inverter is perfect for homeowners seeking a scalable, safe, and efficient solar solution. Its combination of advanced energy management, fast backup switching, and broad battery compatibility makes it a reliable choice for maximizing solar power utilization while ensuring uninterrupted energy supply.
Technical Specifications
| Specification | GW10K-ES-C10 |
|---|---|
| Series | ES Uniq |
| Type | Single-Phase Hybrid Inverter (LV) |
| Nominal Power | 10 kW |
| Battery Type | Li-Ion / Lead-acid |
| Nominal Battery Voltage | 48 V |
| Battery Voltage Range | 40–60 V |
| Max. Charging Current | 200 A |
| Max. Discharging Current | 200 A |
| Max. Charging Power | 10 kW |
| Max. Discharging Power | 11 kW |
| PV Max. Input Power | 20 kW |
| MPPTs | 2 |
| MPPT Operating Voltage Range | 60–550 V |
| Max. Input Current per MPPT | 32 A |
| AC Nominal Output Power | 10 kW |
| AC Max. Output Power (Grid/Backup) | 11 kW |
| AC Nominal Voltage | 220/230/240 V |
| AC Voltage Range | 170–280 V |
| AC Frequency | 50/60 Hz |
| Backup Switching Time | < 4 ms |
| Parallel Operation | Up to 6 units |
| Safety Features | AI-driven AFCI, IP66 |
| Cooling Method | Natural Convection + Smart Fan |
| Communication | RS485, Wi-Fi, LAN, CAN, Bluetooth |
| User Interface | LCD + WLAN App |
| Operating Temp. Range | -35 °C to +60 °C |
| Operating Humidity | 0–95 % |
| Max. Altitude | 3000 m |
| Dimensions (W×H×D) | 560 × 444.5 × 226 mm |
| Weight | 29 kg |
| Mounting | Wall-mounted |
