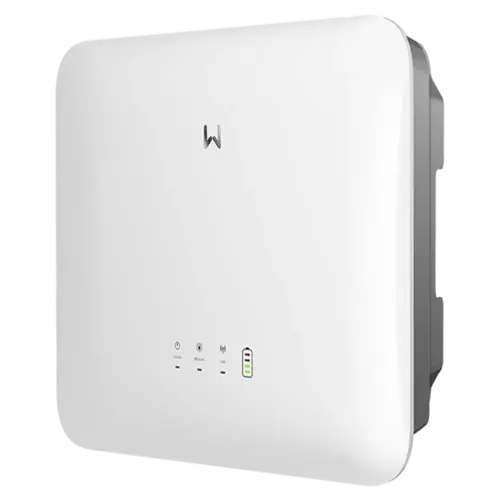

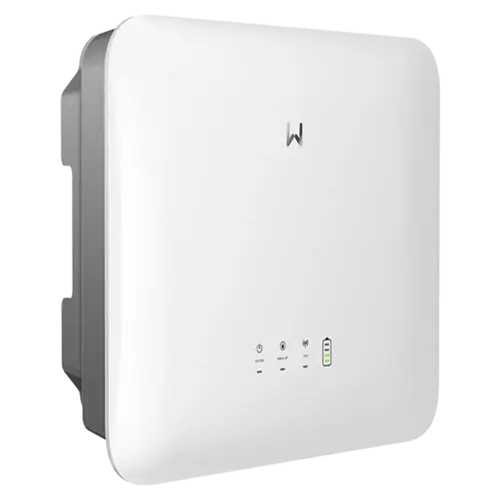

GoodWe GW5000-ES-20
The GoodWe GW5000-ES-20 is a high-performance 5kW single-phase hybrid inverter designed to maximize solar energy self-consumption while intelligently managing energy flow. Moreover, it features UPS-level switching in under 10ms, ensuring uninterrupted electricity for heavy loads such as air conditioners.
KSh 133,000.00
The GoodWe GW5000-ES-20 inverter is a high-performance 5kW single-phase hybrid inverter designed to maximize solar energy self-consumption while intelligently managing energy flow. Moreover, it features UPS-level switching in under 10ms, ensuring uninterrupted electricity for heavy loads such as air conditioners. Additionally, its parallel connection capability provides reliable backup power for homes with high energy demands. Furthermore, the inverter is compatible with a wide range of low-voltage batteries, making it a versatile solution for different residential setups.
Smart Control & Monitoring
The GoodWe 5kW inverter offers advanced load management, including intelligent load control via dry contacts. In addition, it integrates seamlessly with smart home systems through multi-protocol communications, allowing homeowners to monitor and optimize energy use from anywhere. As a result, you can achieve higher energy efficiency and reduce unnecessary energy waste.
User-Friendly Design
Installation is made easy with plug-and-play AC and DC terminals, which greatly reduce setup time. The compact and elegant design fits seamlessly into residential spaces, while quick-connect terminals allow for fast and efficient installations. Therefore, homeowners benefit from a smooth, hassle-free setup experience.
Reliable & Safe
Safety is a top priority. The inverter includes optional AFCI protection on the DC side and offers remote shutdown capabilities. Consequently, it ensures peace of mind while maintaining high operational reliability in any scenario.
Flexible Battery Compatibility
This 5kW inverter supports both lithium-ion and lead-acid batteries, including the GoodWe Lynx Home U series. It also handles a maximum 16A DC input per string and is compatible with high-power solar modules. Thus, it provides flexibility for different solar setups and ensures that your energy system remains efficient and adaptable.
Why Choose the GoodWe GW5000-ES-20 5kW Inverter?
Ideal for homeowners seeking energy autonomy, reliable backup power, and cost savings, the GoodWe GW5000-ES-20 5kW inverter combines cutting-edge technology, smart monitoring, and a user-friendly design. Moreover, its UPS-level switching, flexible battery compatibility, and efficient energy management make it the perfect choice for modern residential solar installations.
Technical specifications
| Specification | GoodWe GW5000-ES-20 5kW Inverter |
|---|---|
| Type | Single-phase hybrid inverter |
| Power Rating | 5kW |
| Battery Type Supported | Lithium-ion / Lead-acid |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Max. Continuous Charging Current | 120A |
| Max. Continuous Discharging Current | 120A |
| Max. Charge Power | 5000W |
| Max. Discharge Power | 5300W |
| PV Max. Input Power | 7500W |
| MPPT Voltage Range | 60–550V |
| Number of MPP Trackers | 2 |
| Max. Input Current per MPPT | 16A |
| Nominal AC Output Power | 5000W |
| Max. AC Output Power | 5000W |
| Nominal AC Voltage | 220 / 230 / 240V |
| AC Voltage Range | 170–280V |
| Nominal AC Frequency | 50 / 60Hz |
| Max. AC Current Output | 22.7A |
| User Interface | LED, WLAN + APP |
| Communication | CAN (BMS), RS485 (Meter), WiFi / LAN / 4G |
| Weight | 21.5 kg |
| Dimensions (W × H × D) | 505.9 × 434.9 × 154.8 mm |
Downloads Support
Goodwe GW5000- ES-20 Manual
Goodwe GW5000- ES-20 Datasheet
