Victron SmartSolar MPPT RS 450/100 is a 48V, 100A solar charge controller designed for large off-grid or grid-connected systems. Features fast MPPT, programmable charging, dual trackers, and full remote monitoring.
Victron SmartSolar MPPT RS 450/100 is a 48V, 100A solar charge controller designed for large off-grid or grid-connected systems. Features fast MPPT, programmable charging, dual trackers, and full remote monitoring.
KSh 179,999.00
Victron SmartSolar MPPT RS 450/100 is a 48V, 100A solar charge controller designed for large off-grid or grid-connected systems. Features fast MPPT, programmable charging, dual trackers, and full remote monitoring. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with 100A
You can fully program the charge settings to suit different battery chemistries, such as lead-acid, lithium, and more
You can remotely control and configure this Victron SmartSolar RS charge controller via Bluetooth using the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.
This Victron SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.
When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.
If you connect your installation to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free.
For remote installations – even when there is no internet connection nearby – you may be able to monitor your MPPT by connecting the GlobalLink 520.

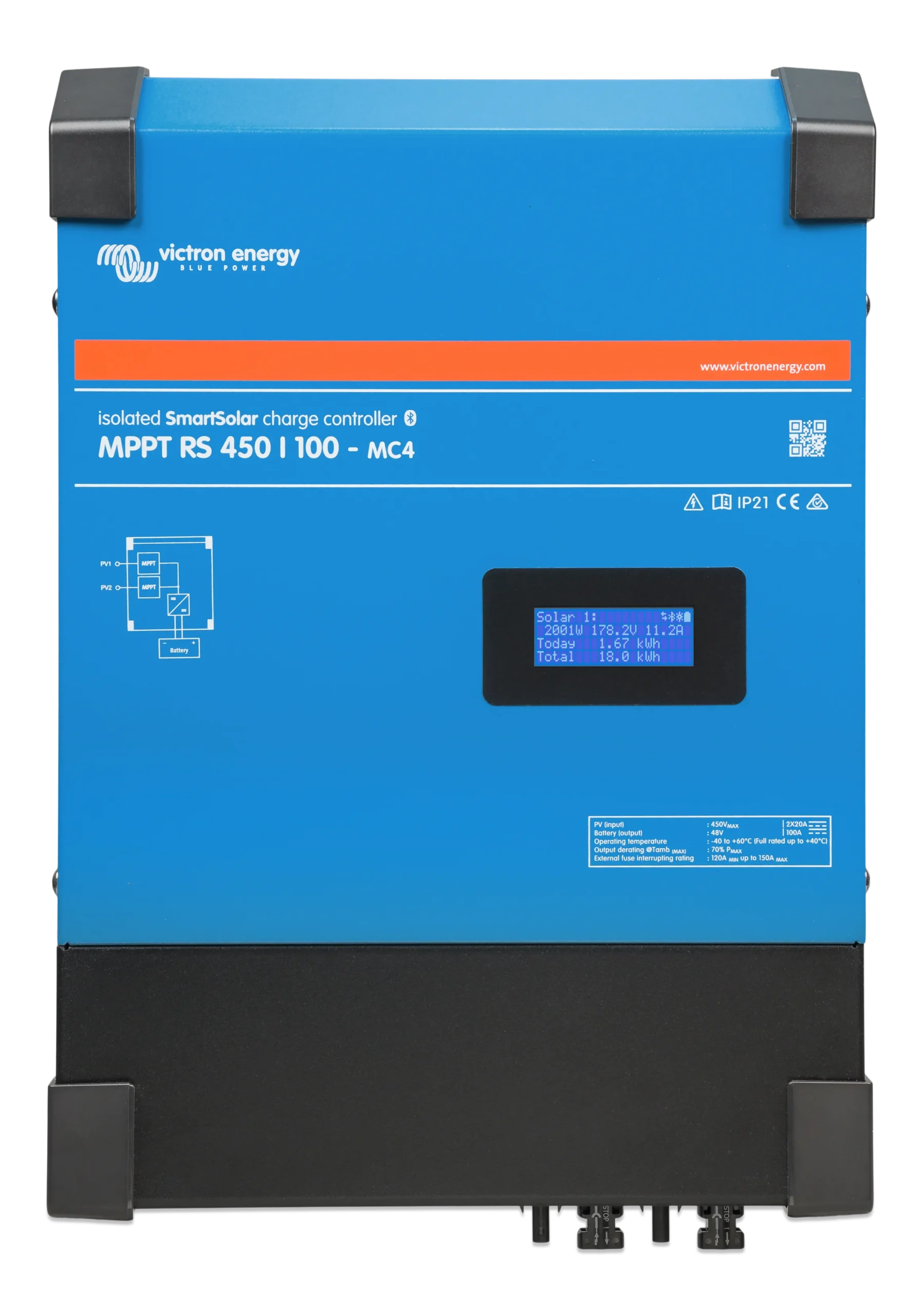

The SmartSolar RS charge controller comes with a front-panel display to show battery, PV, and system information. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.
The SmartSolar RS charge controller includes a programmable relay and supports remote temperature and voltage sensing The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.
| Specification | Value |
|---|---|
| Battery voltage | 48 V |
| Rated charge current | 100 A |
| Max charge power | 5.76 kW |
| Charge voltage (Absorption / Float) | 57.6 V / 55.2 V |
| Programmable voltage range | 36 – 60 V |
| Charge algorithm | Multi-stage adaptive |
| Max efficiency | 96 % |
| Self-consumption | 15 mA |
| Max PV voltage | 450 V |
| MPPT voltage range | 65 – 450 V |
| Number of trackers | 2 |
| Max PV input current | 16 A per tracker |
| Max PV short-circuit current | 20 A per tracker |
| Max DC output | 5.76 kW |
| Max PV array per tracker | 7200 Wp |
| PV isolation fail level | 100 kΩ |
| Parallel operation | Up to 25 units (VE.Can) |
| Weight | 7.9 kg |
| Dimensions (H x W x D) | 440 x 313 x 126 mm |
