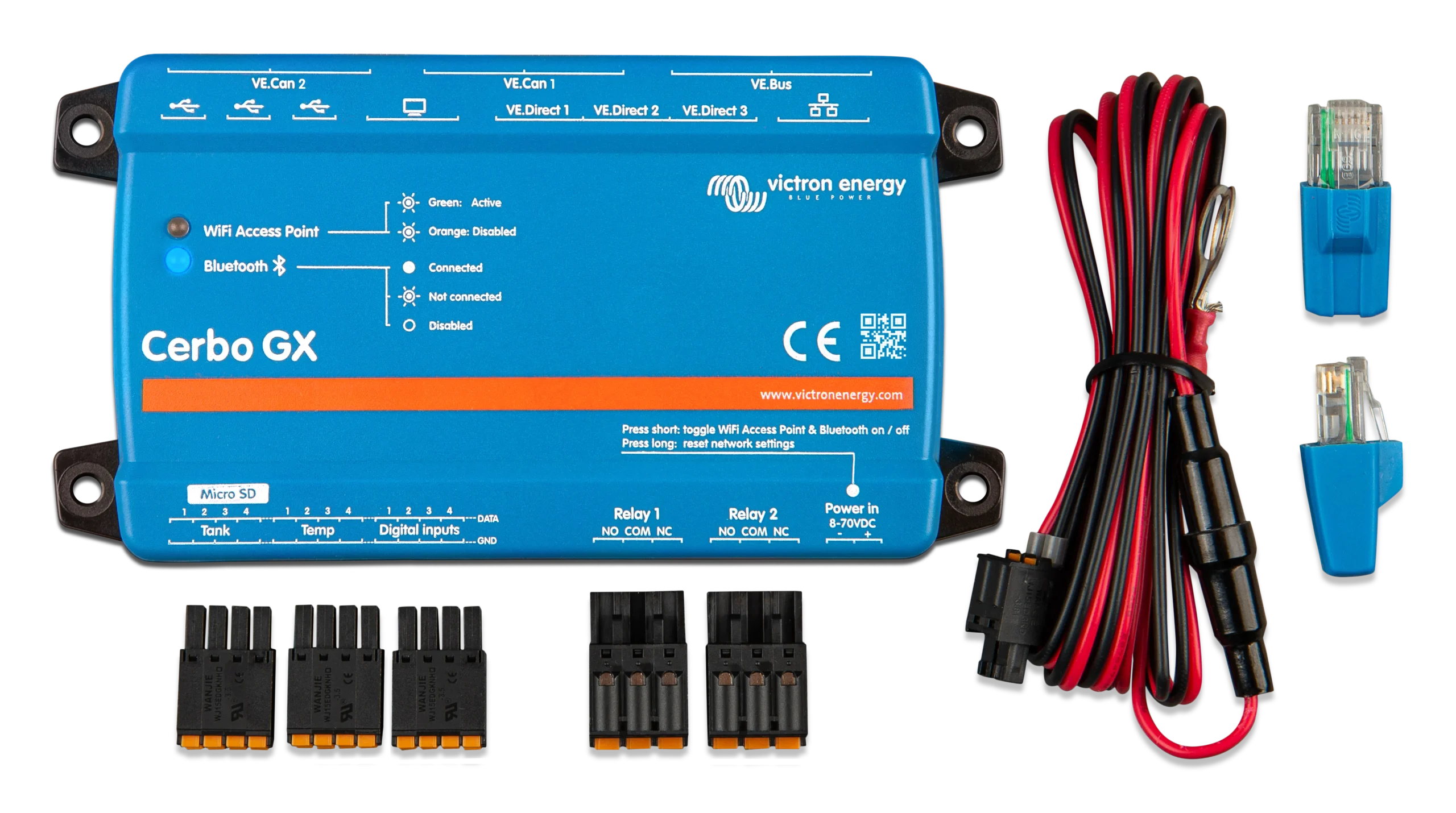

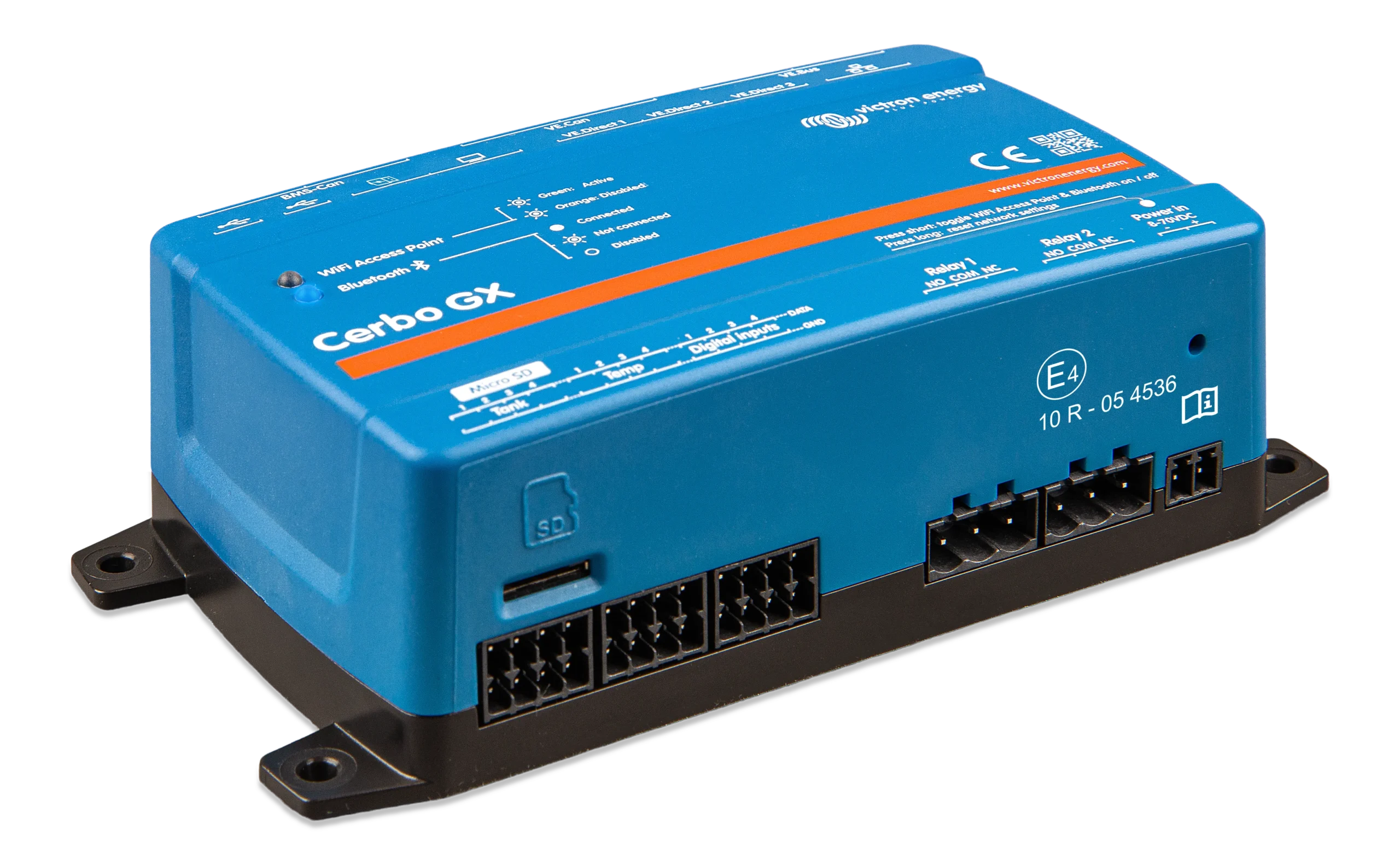

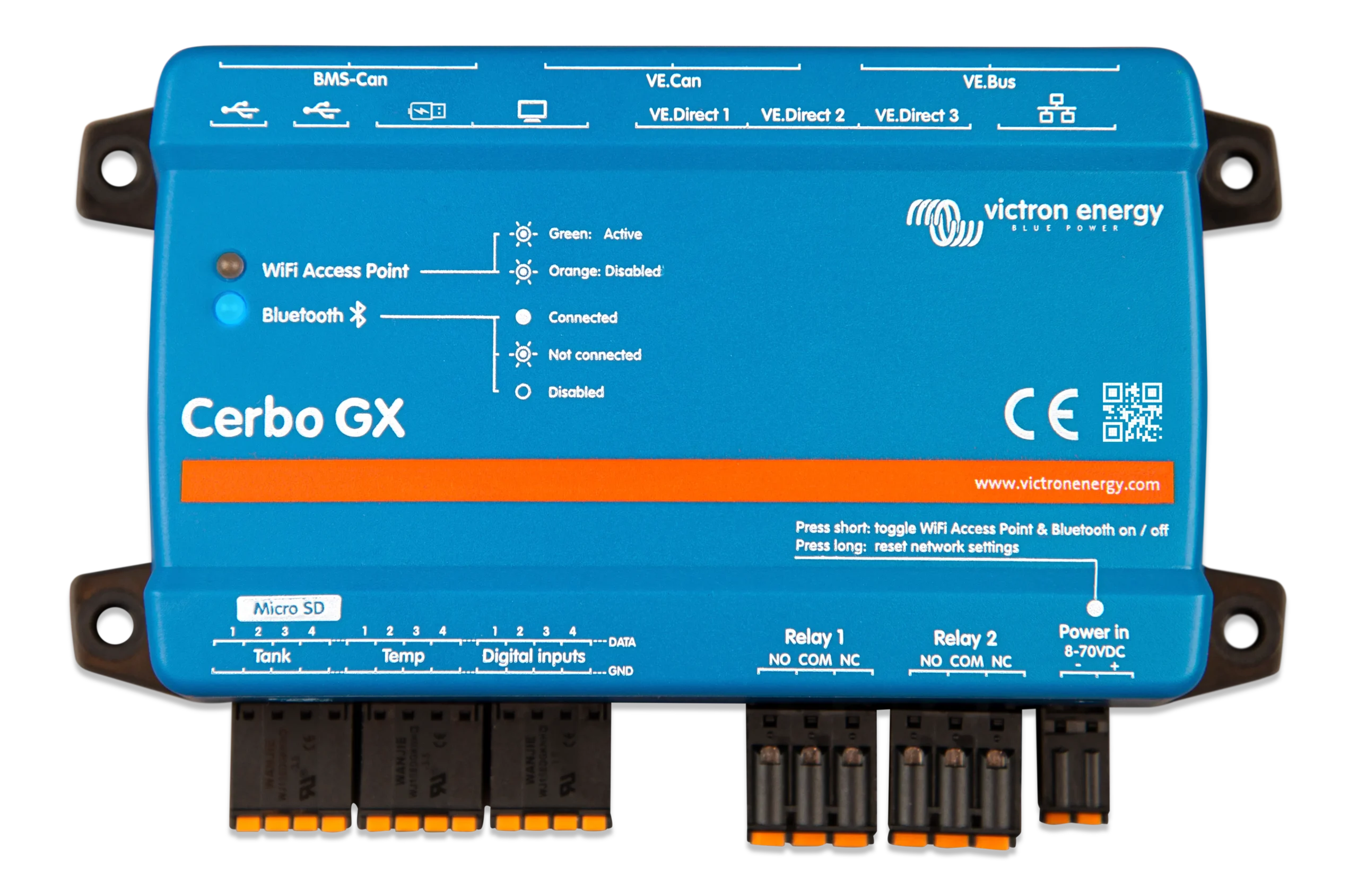

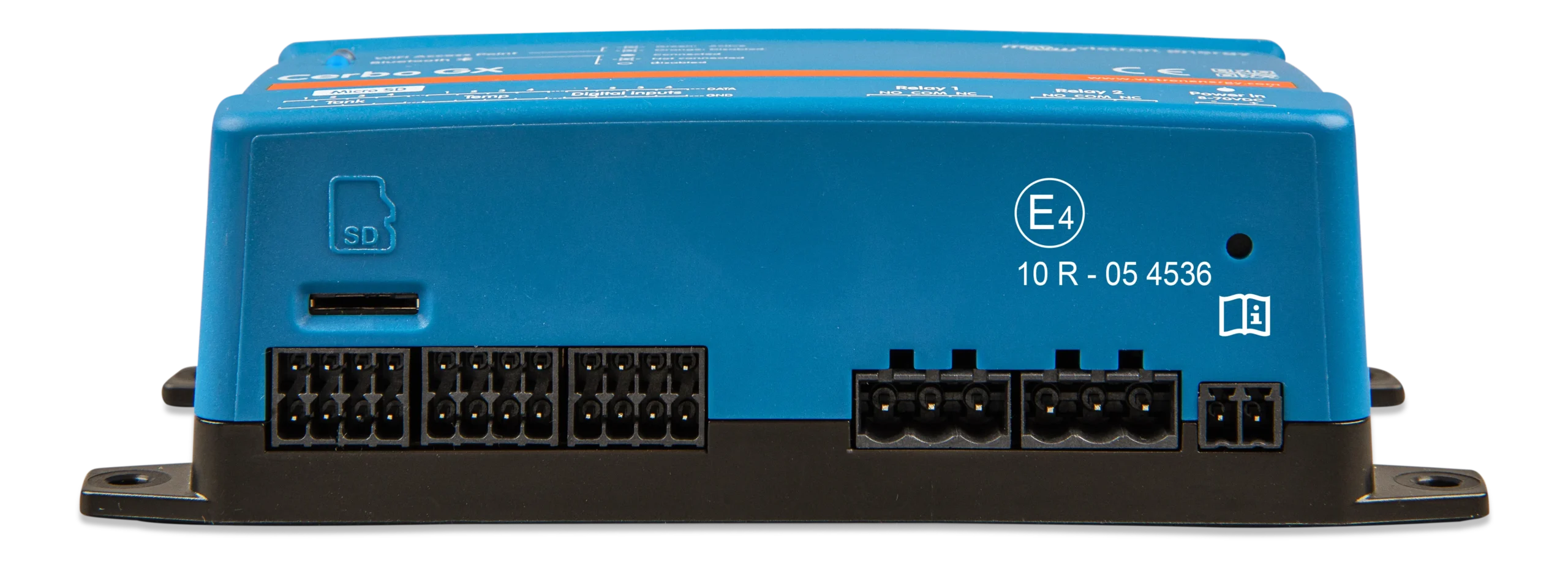

The Victron Cerbo GX is a flexible communication centre that will take remote monitoring to the next level. With all the hardware connection possibilities to fit your every need.
The Cerbo GX enables you to monitor and control your system from anywhere, at any time. It is designed to be a versatile centerpiece that seamlessly connects to your other Victron connected products and supported third party devices. Master remote systems with real-time monitoring, historical analysis, remote access and control with the Victron Remote Monitoring (VRM) portal and VictronConnect app. Or simply connect a GX Touch display for direct control. With plenty of possibilities, the Cerbo GX puts the power in your hands.
Monitor, control and configure the Victron Cerbo GX remotely, over the internet. Just like if you were standing in front of the device, using Remote Console. The same functionality is also available on the local network LAN, or using the WiFi Access Point of the Cerbo GX.
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve complications remotely.
The Victron Cerbo GX is easily mountable and can also be mounted on a DIN-Rail using the DIN35 adapter small, (not included). Its separate touchscreen can be bolted on a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX). Connection is easy via just one cable, taking away the hassle of having to bring many wires to the dashboard. The Bluetooth feature enables a quick connection and configuration via our VictronConnect app.
| Category | Cerbo GX (PN BPP900450100) |
|---|---|
| Supply Voltage | 8–70 VDC |
| Power Consumption @ 12V | 2.8 W |
| Mounting | Wall mount or 35 mm DIN rail |
| Port Type | Details |
|---|---|
| VE.Direct (isolated) | 3 ports (supports max 15 VE.Direct devices) |
| VE.Bus (isolated) | 2 × RJ45 parallel sockets |
| VE.Can | Yes – non-isolated |
| BMS-Can | Yes – BMS-only |
| Bluetooth | Yes |
| Ethernet | 10/100 RJ45 |
| WiFi | Built-in |
| USB Ports | 2 × USB Host + 1 × power-only port |
| I/O Type | Specification |
|---|---|
| Resistive Tank Level Inputs | 4 |
| Temperature Sense Inputs | 4 |
| Digital Inputs | 4 |
| Relays | 2 × NO/NC relays Up to 6 A @ 30 VDC Up to 1 A @ 70 VDC Up to 6 A @ 125 VAC |
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 78 × 154 × 48 mm |
| Operating Temperature | –20 to +50 °C |
| IP Rating | IP20 |
