JA Solar 560W Monocrystalline Half-cell Module

Introduction to JA Solar Monocrystalline PV Module
The module is assembled with 11BB PERC half-cells. This configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

As a result, the key benefits are:
Higher output power
Less shading and lower resistive loss
Lower LCOE
Better mechanical loading tolerance

We provide superior warranty:
12-year product warranty
25-year linear power output warranty
0.55% Annual Degradation over 25 years

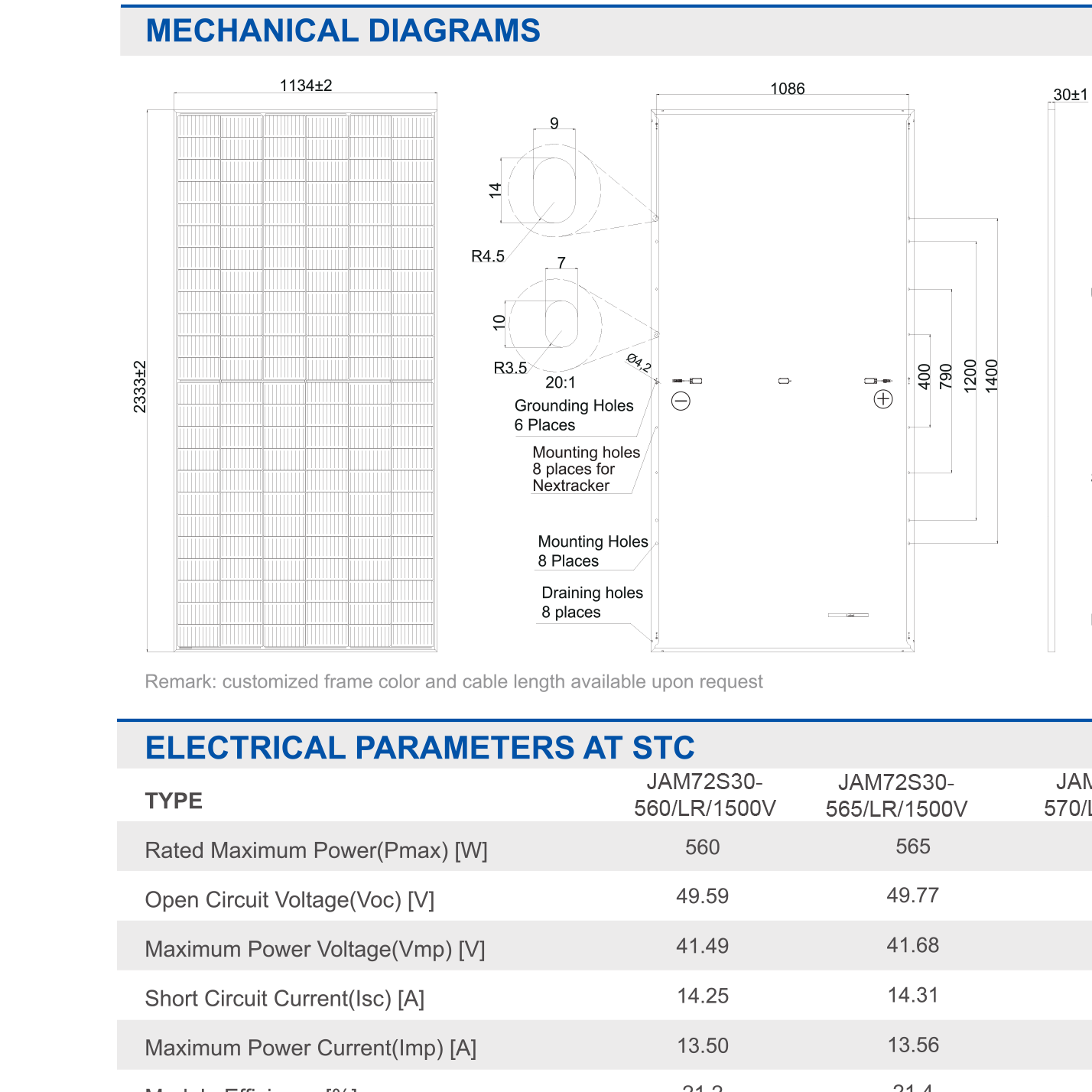

A summary of mechanical specifications
Cell: Monocrystalline
Weight: 28kg
Dimensions: 2333±2mm x 1134±2mm x 30±1mm
Cable Cross Section Size: 4mm² (IEC), 12 AWG (UL)
No. of cells: 144(6×24)
Junction Box: IP68, 3 diodes
Connector Stäubli: MC4-EVO2A/MC4-EVO2, QC Solar QC 4.10-351/QC 4.10-35
Cable Length: (Including Connector) Portrait: 300mm (+)/400mm(-); 800mm(+)/800mm(-)(Leapfrog) Landscape: 1400mm(+)/1400mm(-)
Front Glass: 3.2mm
Country of Manufacturer: China/Vietnam

A summary of electrical specifications at STC
Rated Maximum Power (Pmax) [W]: 560
Open Circuit Voltage (Voc) [V]: 49.59
Maximum Power Voltage (Vmp) [V]: 41.49
Short Circuit Current (Isc) [A]: 14.25
Maximum Power Current (Imp) [A]: 13.50
Module Efficiency [%]: 21.2
Power Tolerance 0~+5W
Temperature Coefficient of Isc (α_Isc): +0.045%/°C
Temperature Coefficient of Voc (β_Voc): -0.275%/°C
Temperature Coefficient of Pmax (Ƴ_Pmp): -0350%/°C
STC – Irradiance 1000W/m³, cell temperature 25°C, AM1.5G

A summary of operating conditions
Maximum System Voltage: 1500V DC
Operating temperature: -40°C ~ +85°C
Maximum Series Fuse Rating: 25A
Maximum Static Load Front: 3600Pa, 1.5
Maximum Static Load Front: 1600Pa, 1.5
NOCT: 45±2°C
Safety Class: Class II
Fire Safety Class: Class C

Download datasheet for JA Solar Monocrystalline PV Module here.
