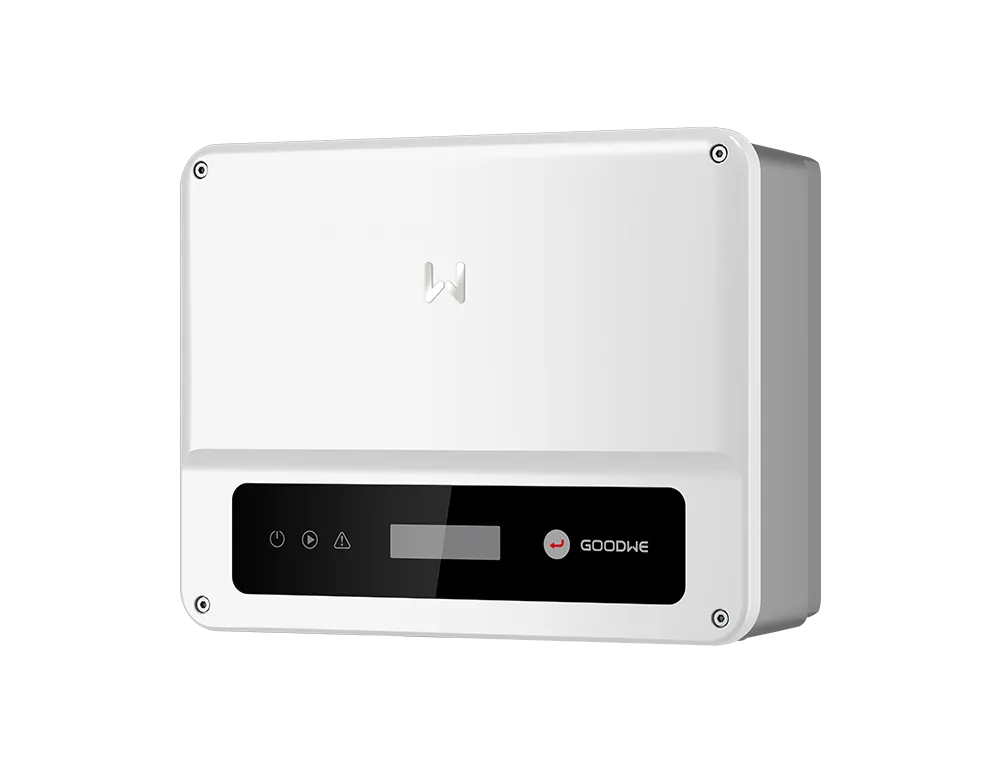

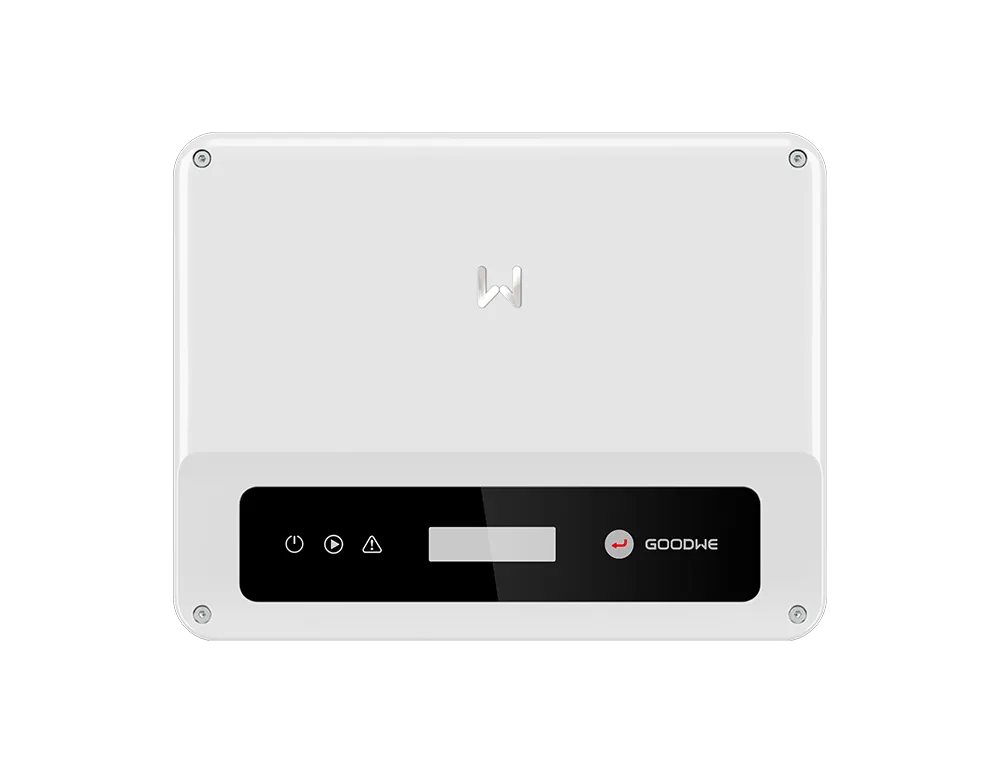

The GoodWe XS G3 1kVA inverter (GW1000-XS-30) is a compact and lightweight residential solar inverter designed for easy installation and high efficiency. With 200% DC input oversizing, a maximum efficiency of 97.1%, and smart monitoring via the GoodWe smart meter, it delivers reliable energy generation while optimizing self-consumption.
The GoodWe XS G3 1kVA inverter (GW1000-XS-30) is an ideal solution for residential solar systems, combining lightweight design, high efficiency, and smart monitoring. Weighing only 4.6 kg and as compact as an A4 sheet of paper, it allows for easy installation and handling even in tight spaces. With 200% DC input oversizing and a maximum efficiency of 97.1%, this inverter ensures homeowners maximize their solar energy production. Its quiet operation at less than 20 dB
GoodWe XS G3 1kVA – Safety and Reliability
The GoodWe XS G3 1kVA inverter includes advanced safety features. With optional AFCI, it detects arc faults, triggers alarms through the monitoring system, and automatically disconnects the circuit to prevent hazards. The Type II Surge Protection Device (SPD) protects the inverter from lightning strikes and electrical surges. These features make the XS G3 1kVA a reliable and safe choice for residential solar systems.
Smart Monitoring with GoodWe XS G3 1kVA
Homeowners can monitor energy usage in real time using the GoodWe smart meter, enabling 24-hour load consumption tracking. The integrated export power limit allows the inverter to automatically adjust to limits set by local energy providers, ensuring efficient solar energy management, increased self-consumption, and reduced electricity bills.
Optimal Energy Generation with GoodWe XS G3 1kVA
With a maximum input current of 16A per string and a single MPPT tracker, the XS G3 1kVA inverter captures energy efficiently under varying conditions. Its compact design does not compromise performance, delivering consistent and reliable power for small residential systems. This makes it an ideal inverter for homeowners who want high efficiency in a small, easy-to-install package.
| Specification | GW1000-XS-30 |
|---|---|
| Max. Input Voltage (V) | 600 |
| MPPT Operating Voltage Range (V) | 40–450 |
| Start-up Voltage (V) | 50 |
| Nominal Input Voltage (V) | 360 |
| Max. Input Current per MPPT (A) | 16 |
| Max. Short Circuit Current per MPPT (A) | 25 |
| Number of MPPT Trackers | 1 |
| Nominal Output Power (W) | 1000 |
| Nominal Output Voltage (V) | 220/230/240 L/N/PE |
| Output Voltage Range (V) | 154–288 |
| Nominal AC Grid Frequency (Hz) | 50/60 |
| Max. Output Current (A) | 4.6 |
| Power Factor | ~1 (adjustable 0.8 lead/lag) |
| Max. Total Harmonic Distortion | <3% |
| Max. Efficiency (%) | 97.1 |
| Cooling Method | Natural Convection |
| User Interface | LED, LCD (Optional), WLAN + App |
| Communication | RS485, WiFi, LAN, 4G/Bluetooth (Optional) |
| Weight (kg) | 4.6 |
| Dimensions (W×H×D mm) | 306 × 218 × 119 |
Downloads and Support
GoodWe GW1000-XS-30 Manual.
GoodWe GW1000-XS-30 Datasheet.
