The Felicity LPBF48200-A Lithium Battery is a high-capacity LiFePO4 energy storage system featuring smart BMS protection, wide inverter compatibility, and expandable storage up to 60kWh.
The Felicity LPBF48200-A Lithium Battery is a high-capacity LiFePO4 energy storage system featuring smart BMS protection, wide inverter compatibility, and expandable storage up to 60kWh.
KSh 240,000.00

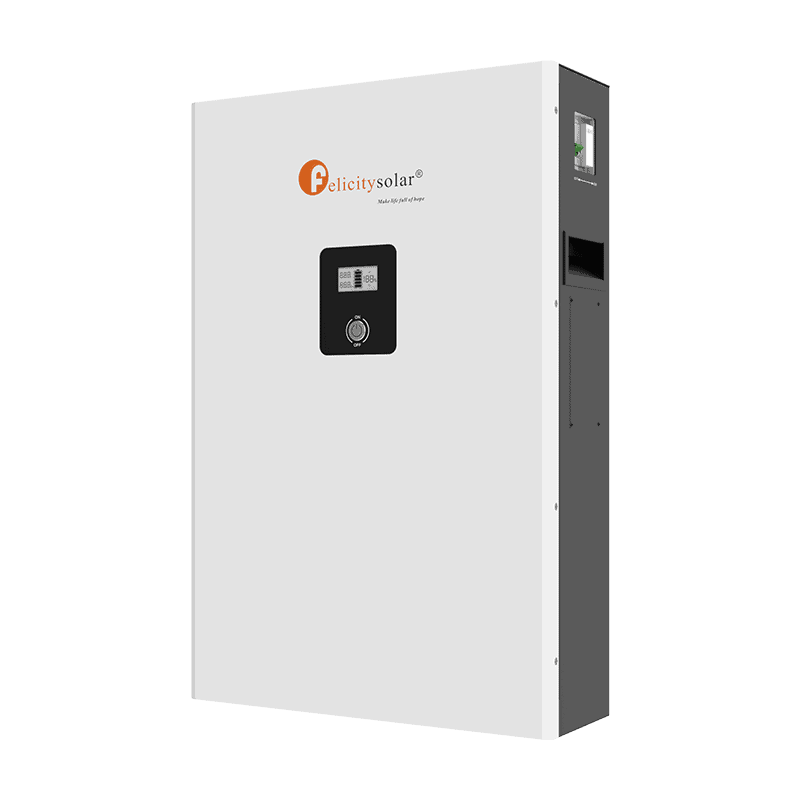

The Felicity LPBF 48200-A Lithium Battery is a modern and dependable energy-storage solution designed for homes and small commercial systems. It delivers stable power and long service life, it also offers reliable backup performance for users who want efficiency without unnecessary complexity. Because it uses advanced LiFePO₄ chemistry, it provides consistent output and excellent durability over many years of operation.
Felicity LPBF 48200-A Lithium Battery is engineered for frequent charging and discharging, and it maintains strong performance even under demanding conditions. Moreover, its LiFePO₄ cells offer high thermal stability, which allows the unit to operate safely in a wide range of climates. As a result, the LPBA 48100-OL remains dependable whether it is used for daily cycling or emergency backup. Additionally, its compact design saves installation space while still offering meaningful storage capacity.
The built-in Battery Management System (BMS) continuously monitors each cell to keep the battery within safe operating limits. It controls voltage, prevents overcharging or over-discharging, and protects the battery from excessive current. Furthermore, the system automatically disconnects power during abnormal conditions and restores operation once everything returns to normal. Therefore, the user gets a safer and more convenient power solution without the need for manual intervention.
The LPBA 48100-OL supports both wall-mounted and floor-mounted installation, which makes it suitable for different room layouts. Additionally, it integrates easily with many leading inverter brands, allowing smooth upgrades to existing systems. Because of its broad compatibility, users can install it in homes, offices, or solar setups without major configuration changes.
For users who need greater storage capacity, the battery allows multiple units to be connected in parallel. This creates a stronger and more adaptable energy system that grows as power needs increase. Consequently, the LPBA 48100-OL offers a flexible, long-term approach to energy independence and stable backup power.
Technical Specification
| Model | LPBF48200-A |
| Capacity | 10kWh |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Operating Voltage | 48-57.6V |
| Recommend Charge/Discharge Current[1] | ≤100A |
| Recommend Charge/Discharge Power[1] | ≤5,000W |
| Maximum Charge/Discharge Current(15s) | 150A |
| Maximum Charge/Discharge Power(15s) | 7,500W |
| Depth of Discharge(DOD) | ≥95% |
| Scalability | Up to 6 units in parallel |
| Communication | RS485 / CAN |
| Protection Level | IP21 |
| Cycle Life[2] | ≥ 6000 Cycles |
| Charging Temperature Range | 0-55°C |
| Discharging Temperature Range | -20-55°C |
| Display | LCD+LED |
| Installation | Wall-Mounted / Floor-Mounted |
| Protection | Built-in smart BMS, Breaker ,Fuse |
| Warranty | 5 Years |
| Net Weight | 66kg |
| Gross Weight | 84kg |
| Product Dimension | 704x468x179mm |
| Package Dimension | 793x561x349mm |
| [1] Recommend charge/discharge current/power is affected by temperature and SOC. | |
| [2] Test conditions: 0.2C Charging/Discharging @25°C, 80% DOD. | |
