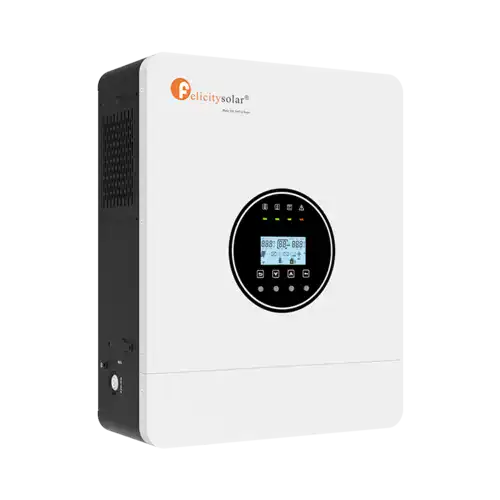

The Felicity IVEM6048 6 kW Inverter/Charger is a multifunctional power solution combining an MPPT solar charger, pure sine wave inverter, and smart battery charger. Featuring wide PV compatibility, up to 120A battery charging, and support for parallel operation, it delivers reliable, efficient, and uninterrupted power for homes and businesses. Ideal for both grid-tied and off-grid setups.
KSh 64,000.00
The Felicity IVEM6048 6 kW Inverter/Charger is a versatile and reliable energy solution designed for homes, businesses, and off-grid applications. It combines a pure sine wave inverter, an advanced MPPT solar charge controller, and a high-performance battery charger into one compact system. As a result, users benefit from seamless, uninterrupted power regardless of changes in grid or weather conditions.
To begin with, the IVEM6048 supports a wide PV input range of 90VDC to 500VDC, making it compatible with many different solar configurations. Moreover, its upgraded solar input capacity allows up to 27A, ensuring efficient energy harvesting throughout the day. The unit also features a powerful 120A battery charging system, enabling fast and stable charging for lithium and lead-acid batteries. Additionally, it includes a lithium activation function, which is essential for maintaining modern battery health.
This inverter is equipped with a user-friendly LCD interface that allows full customization of system settings. Users can easily adjust battery charging currents, choose AC or solar charging priority, and set input voltage ranges based on appliance sensitivity. Furthermore, the system automatically restarts when AC supply returns, which enhances convenience and reliability.
For better protection, the IVEM6048 includes overload, over-temperature, and short-circuit safeguards. It can even operate without a battery, giving users added flexibility during emergencies. In addition, its cold start feature allows the inverter to power on directly from the battery when the grid is unavailable.
Finally, the inverter supports parallel operation of up to 12 units, making it suitable for both small and large installations. Whether powering household appliances or motor-driven equipment such as refrigerators, fans, or air conditioners, the Felicity IVEM6048 delivers consistent, clean, and dependable power.
Technical Specifications
| Line Mode Specifications | |
| Model
|
IVEM6048 |
|
Rated Output Power |
6000VA |
| 6000W | |
| Nominal DC Input Voltage | 48V |
|
Input Voltage Waveform |
Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Voltage Disconnect | 170Vac±7V (UPS); 90Vac±7V (Appliances) |
| Low Loss Voltage Re-connect | 180Vac±7V (UPS); 100Vac±7V (Appliances) |
| High Line Voltage Disconnect | 280Vac±7V |
| High Line Voltage Re-connect | 270Vac±7V |
| Max AC Input Voltage | 280Vac |
| Nominal Input Frequency | S0Hz / 60Hz (Auto detection) |
| Low Line Frequency Disconnect | 40±1Hz |
| Low Line Frequency Re-connect | 42±1Hz |
| High Line Frequency Disconnect | 65±1Hz |
| High Line Frequency Re-connect | 63±1Hz |
| Output Voltage Waveform | As same as input waveform |
| Output Short Circuit Protection | Line mode: Circuit Breaker Battery mode: Electronic Circuits |
| Efficiency (Line Mode) | >95% (Rated R load, battery full charged) |
| Transfer Time (Single unit) | lOms typical (UPS); 20ms typical (Appliances) |
| Transfer Time (Parallel) | S0ms typical |
| Output Power Derating | When AC input voltage drops to 180V, the output power will be derated |
| Through Without Battery | Yes |
| Max. Bypass Overload Current | 40A |
| Max. Inverter/Rectifier Current | 40A/6000W |
Downloads and Support
Felicity IVEM6048 6 kW Inverter/Charger Manual and Datasheet
