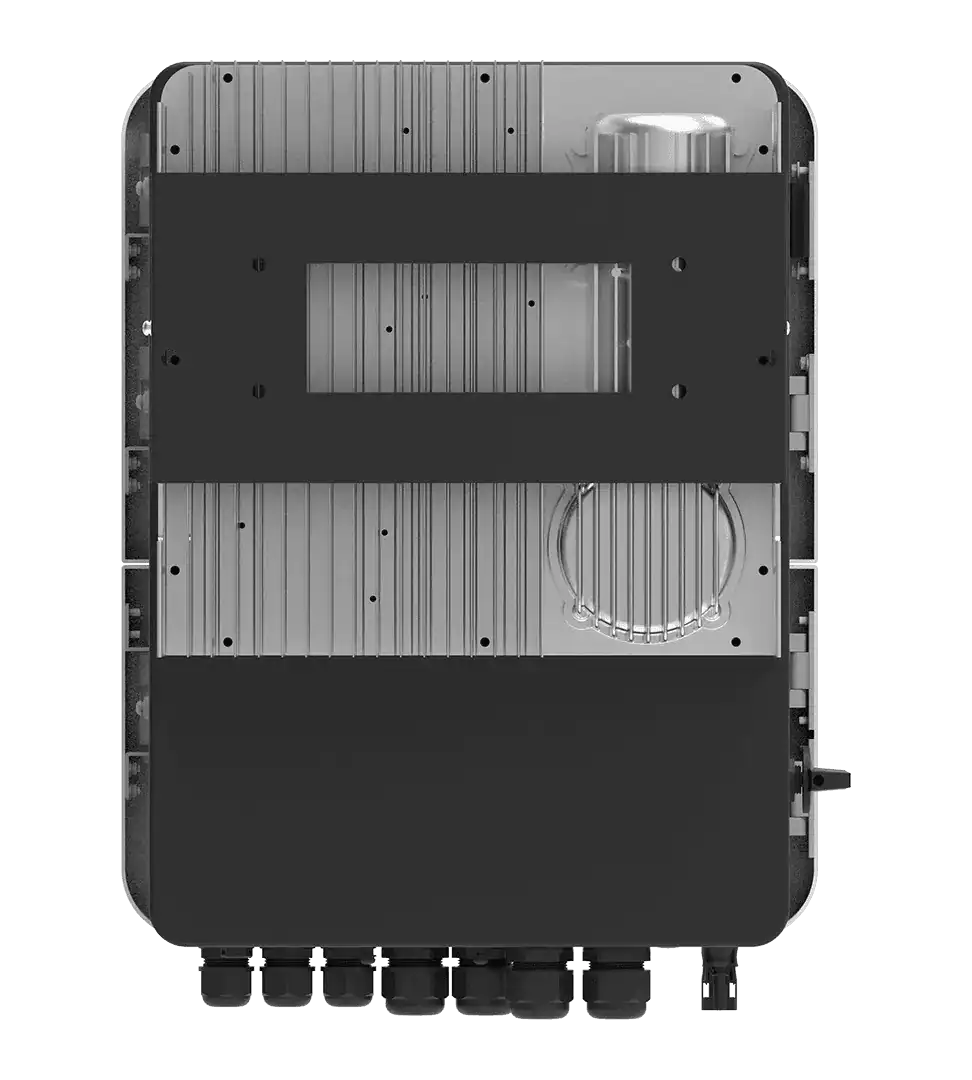

The Deye SUN-3.6K-SG04LP1-EU Inverter is a smart, compact 3.6kW inverter that manages solar, battery, and grid power with high efficiency. Featuring dual MPPT trackers, WiFi monitoring, intelligent battery charging, export limiting, and multiple operating modes, it’s ideal for homes and small offices seeking reliable backup and optimized solar performance.
KSh 120,999.00
The Deye SUN-3.6K-SG04LP1-EU Inverter is a versatile power system that combines an inverter, solar charger, and battery charger into a single compact unit, Additionally, it is designed for both residential and commercial setups, and it delivers reliable power stability together with efficient energy control.
This inverter supports on-grid, off-grid, and UPS modes, allowing it to shift smoothly between different power sources, it also includes programmable priority settings, so you can choose whether the battery or the grid supplies power first.
Through intelligent three-stage MPPT charging, adjustable voltage and current, and selectable charging priority from AC, solar, or generator sources, the inverter ensures optimal battery efficiency. Furthermore, it helps extend the battery’s overall service life..
With two MPPT trackers, the system maximizes solar power generation , it also supports self-consumption and controls excess power feed-back to the grid through its integrated anti-feedback feature.
The inverter also includes WiFi monitoring, live system data, and a clear LCD interface for easy setup. The Time-of-Use settings and Smart Load functions help users plan when and how their energy is used to achieve greater efficiency.
Moreover, it incorporates multiple protective features such as overload, over-temperature, and short-circuit protection, which helps ensure consistent and secure performance even under various operating conditions.
This hybrid inverter is suitable for many household and office appliances, including motor loads like fridges, pumps, and air conditioners, its durable design makes it ideal for demanding environments and long-term energy applications.
Technical Specification
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 90 |
| Max. Discharging Current (A) | 90 |
| Max. PV access power (W) | 7200 |
| Max. PV Input Power (W) | 5760 |
| Max. PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| PV Input Voltage Range (V) | 125-500 |
| MPPT Voltage Range (V) | 150-425 |
| Max. Operating PV Input Current (A) | 36 |
| Max. Input Short-Circuit Current (A) | 54 |
| Max. Efficiency | 97.60% |
| MPPT Efficiency | >99% |
